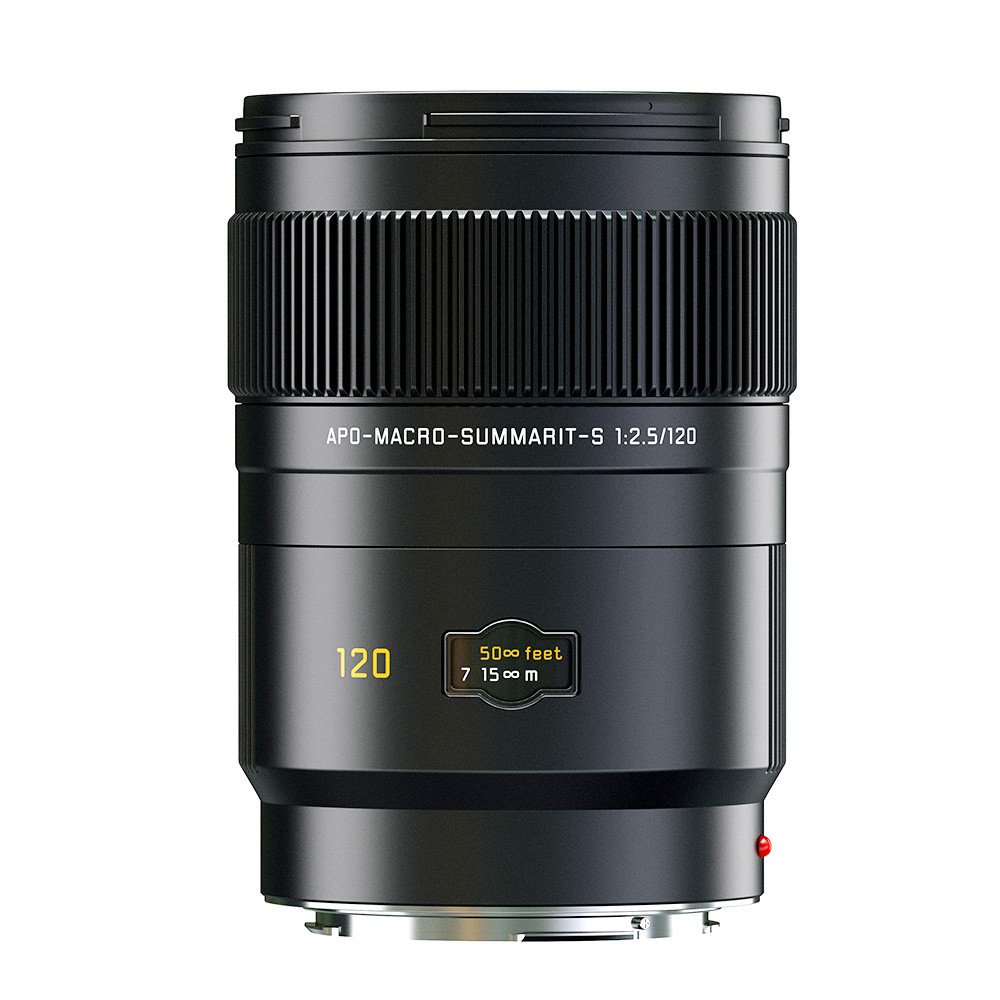

Leica APO-Macro-Summarit-S 120mm f/2.5 CS
AED 31,330 (Inclusive of VAT)Coming Soon - Pre-Order Now Call Us
- Technical Specs
Macro meets telephoto
The APO Macro-Summarit-S 120 mm f/2.5 plays a true dual role in the Leica S-System: On the one hand, it is a macro lens with a maximum reproduction ratio of 1:2 that renders even the finest details with perfection. On the other hand, its focal length, equivalent to 100 mm in 35 mm format, makes it an ideal moderate telephoto lens for portrait photography, particularly as its unusually large initial aperture allows perfect isolation of portrait subjects from their backgrounds.
Its design and construction is equally elaborate: of the nine lenses arranged in seven groups, three are made of special glass with anomalous partial dispersion. The exceptionally low dispersion (color scattering) of two of these is instrumental in keeping chromatic aberrations to a minimum. Its front-group focusing design features a floating element, i.e. an independently moving lens group that ensures spectacular imaging performance throughout the entire focusing range, even at the closest of focusing distances. Although the lens does not feature a completely sealed barrel due to the extreme extension of its close-up range, it is very effectively protected against the influences of water droplets, dust and moisture.
The optical design of the lens ensures that aberrations such as vignetting or distortion remain imperceptible. The contrast performance of the APO Macro-Summarit-S 120 mm f/2.5 is already so good at maximum aperture that stopping down to smaller apertures brings only an insignificant increase in contrast rendition, and even then, only in the extreme corners of the image. The combination of a moderate telephoto focal length, full macro-capability and an unusually fast initial aperture of f/2.5, and an alternative version with a central shutter, make this a unique lens in every respect.
This is the CS version of the lens, which has a central shutter, also known as a leaf shutter, built-in. The central shutter allows the S camera to sync with a flash unit at any shutter speed up to and including 1/1000th of a second. This provides the photographer with exceptional control when balancing ambient and strobe lighting.
|Image angle||approx. 25° / 21° / 24° (diagonal, horizontal, vertical), corresponds to approx. 96 mm focal length in 35 mm format|
|Number of lenses / groups||9 / 7|
|Position of entrance pupil||11,4 mm|
|Focusing range||0,57 m to infinity|
|Scales||Combined meter/feet graduation|
|Smallest object field||64 mm × 95 mm|
|Largest reproduction ratio||1 : 2,1|
|Setting / Function||Electronically controlled diaphragm, set using setting/selection dial on camera, including half values|
|Central shutter||Built-in shutter mechanism range: 125 secs to 1/1000th of a sec Flash sync at all speeds|
|Bayonet||Leica S bayonet|
|Filter mount / Lens hood||External bayonet for lens hood (included), internal thread for E72 filter, filter mount does not rotate|
|Length to bayonet mount||approx. 128 / 202 mm (without / with lens hood)|
|Largest diameter||approx. 91 / 103 mm (without / with lens hood)|
|Weight||approx. 1135 / 1205 g (without / with central shutter)|
