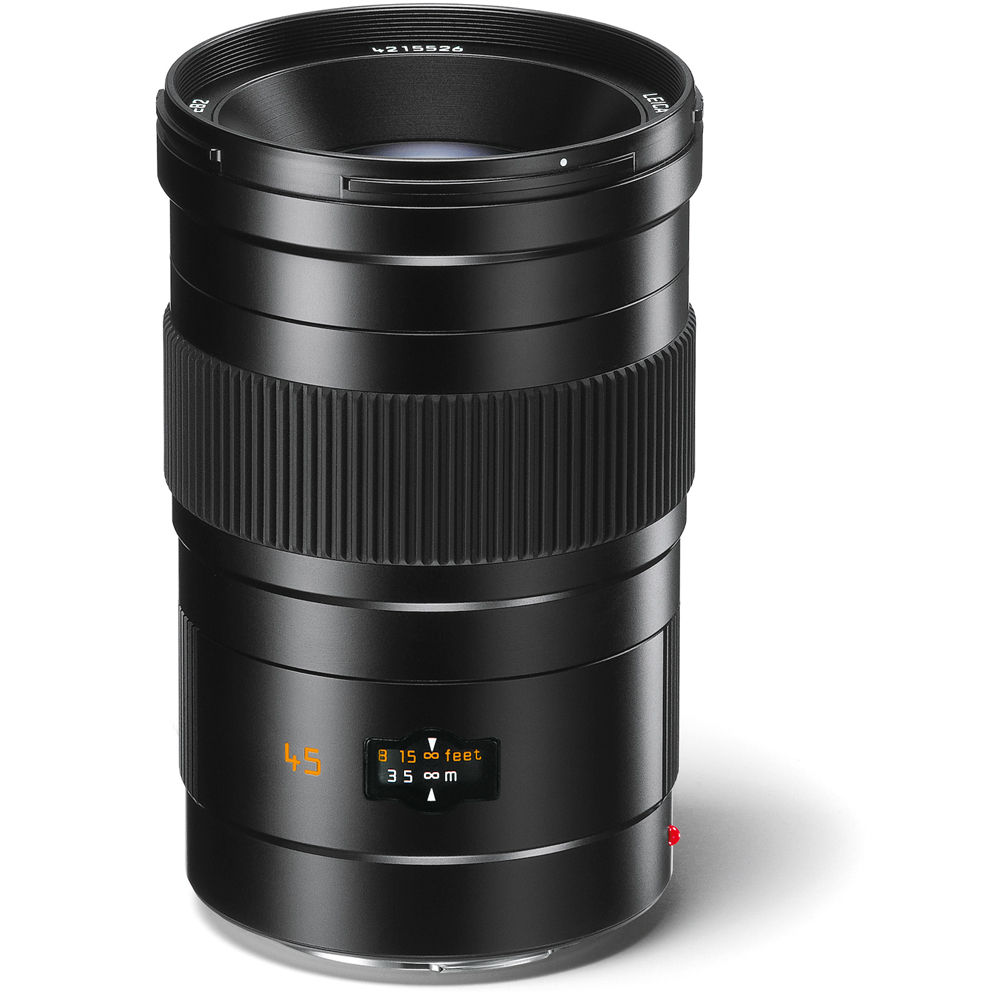

Leica Elmarit-S 45mm f/2.8 ASPH CS

The Leica Elmarit-S 45mm f/2.8 ASPH CS Lens is a wide-angle prime lens designed for the Leica S-series medium format digital cameras. It provides a 35mm-equivalent focal length of 36mm, giving a moderately wide perspective that is ideally suited to photojournalism, architecture, landscape, and fashion photography. An f/2.8 maximum aperture is ideal for shallow depth of field imagery and also effective in dim lighting conditions when working with available light. The CS version of this lens incorporates an integrated central shutter within the lens to benefit working with high-speed flash sync at any shutter speed, up to the maximum of 1/1000 sec.

The sophisticated optical design of this lens features three elements with anomalous partial dispersion glass and two high refraction extra-low dispersion elements to reduce chromatic aberrations. In addition, one aspherical surface element minimizes monochromatic aberrations and improves overall image sharpness. Rear-group focusing and one independent floating optical element maintain a constant lens length while providing sharp focus from infinity to the minimum focus distance of 23.6″.

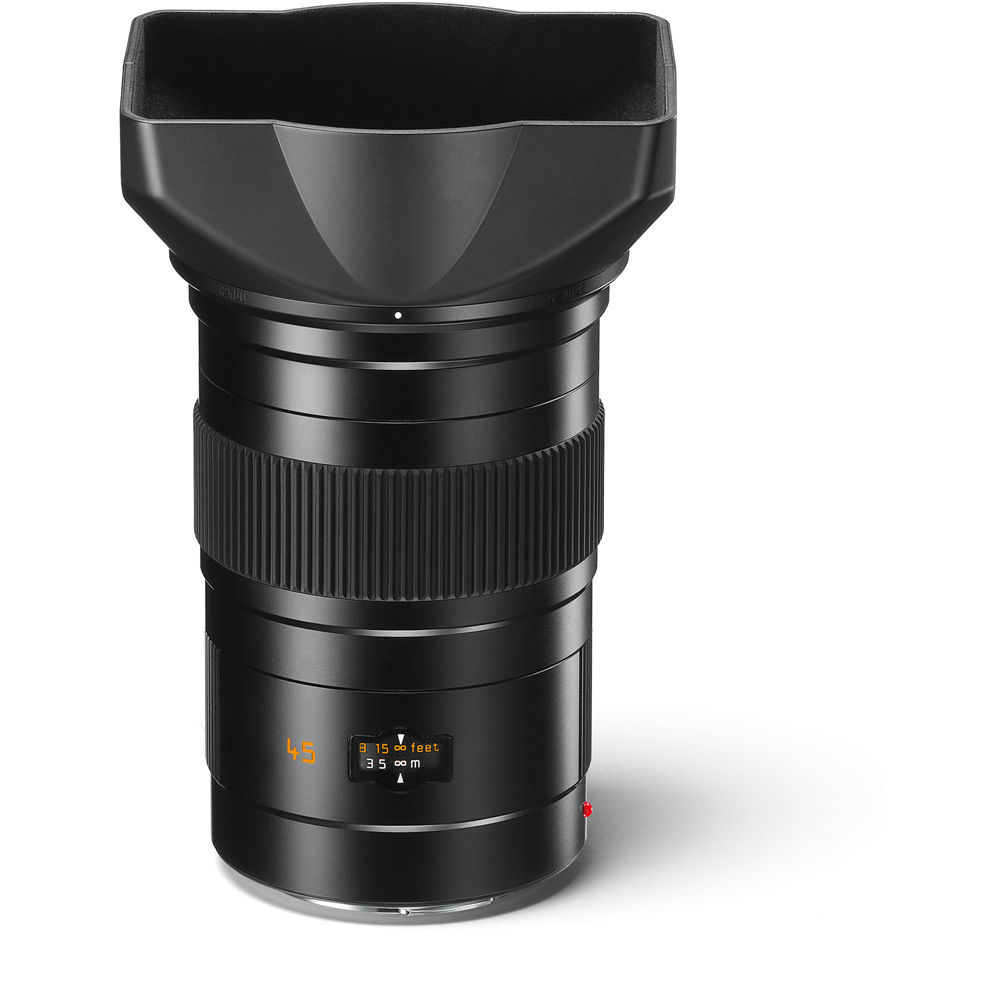

Weather sealing protects the lens from dust and water spray, and the included retractable lens hood deflects stray light to minimize flares and provide high contrast images, even in backlight situations.

Focal Length 45 mm
Aperture Maximum: f/2.8
Minimum: f/22
Camera Mount Leica S bayonet
Angle of View @ Infinity 62°
Minimum Focus Distance 23.62″ (.6 m)
Area of coverage 456 x 304 mm
Diaphragm Blades Not Specified By Manufacturer
Elements/Groups 12/9
Maximum Reproduction Ratio 1:10.1
Shutter Type Leaf
Shutter Speeds 1 / 1000 to 8 second
Flash Synchronization Shutter speed up to 1 / 1000At all Speeds
DOF Scale No
Distance Scale Yes
PC Outlet Not Specified By Manufacturer
Autofocus Yes
Tripod Collar No
Filter Thread Front: 82 mm
